What Is a Dotless COB LED Strip Benefits and Uses

What Does “Dotless” Mean for LED Strips?

When asking what is dotless COB LED strip technology, the term “dotless” refers to a lighting output that is entirely uniform, seamless, and free of visible hotspots or dark intervals.

Traditional LED tape lights rely on Surface Mounted Device (SMD) diodes spaced intermittently along a flexible circuit board. When illuminated, especially at close range or against reflective surfaces, these diodes appear as distinct points of light—often called the “speckle” or “dotting” effect. Hiding these dots traditionally required deep aluminum extrusions paired with thick frosted diffusers, adding bulk and cost to installations.

A dotless COB LED strip eliminates this compromise entirely:

• Seamless Linear Output: Light emerges as an unbroken, continuous ribbon rather than isolated bursts of brightness.
• Zero Visible Hotspots: The light beam remains solid and evenly distributed, even when installed without deep channels or heavy diffusion covers.
• Clean Reflection: When cast against polished stone, high-gloss tiles, or glass, it reflects a crisp, solid line of illumination without distracting diode glare.

By delivering uniform luminance straight from the strip surface, dotless linear lighting sets a higher standard for clean architectural design and premium display aesthetics.

How COB Chip-on-Board Technology Achieves Dotless Light

To understand what a dotless COB LED strip is and how it eliminates dark gaps, you have to look directly at how the board is constructed. Traditional strips place plastic-cased surface-mount diodes (SMDs) at spaced intervals, which creates obvious hotspots. Chip-on-Board (COB) architecture redesigns the entire layout to deliver a single, uninterrupted stream of illumination.

Direct Die Bonding on FPCB

Instead of soldering individual packaged diodes onto the circuit tape, we attach bare micro-LED dies directly onto the flexible printed circuit board (FPCB).

• Micro-Scale Spacing: Hundreds of tiny semiconductor dies sit side by side with minimal separation, eliminating the dead zones that cause diode spotting.
• Thermal Efficiency: Direct die attachment allows heat to pull away from the junction quickly and spread across the copper trace, preventing premature lumen drop.

Continuous Phosphor Encapsulation

The primary mechanism that creates completely uniform lighting is the top coating:

• Single-Layer Covering: Rather than coating individual LED chips separately, a continuous ribbon of phosphor gel is applied over the entire row of dies.
• Integrated Diffusion: This uniform phosphor layer softens and blends the light at the source. The micro-chips work together under the gel, emitting an unbroken line of light before it even hits an external lens.

Wide-Angle Light Distribution

Standard surface-mounted components typically project light in focused cones, requiring deep profiles with heavy frosted covers to blend out dots. Dotless COB strips deliver a wide 180-degree beam spread straight from the board. This broad dispersion allows you to deploy a bright, high-lumen LED strip in shallow mounting channels or against polished surfaces without casting visible diode reflections.

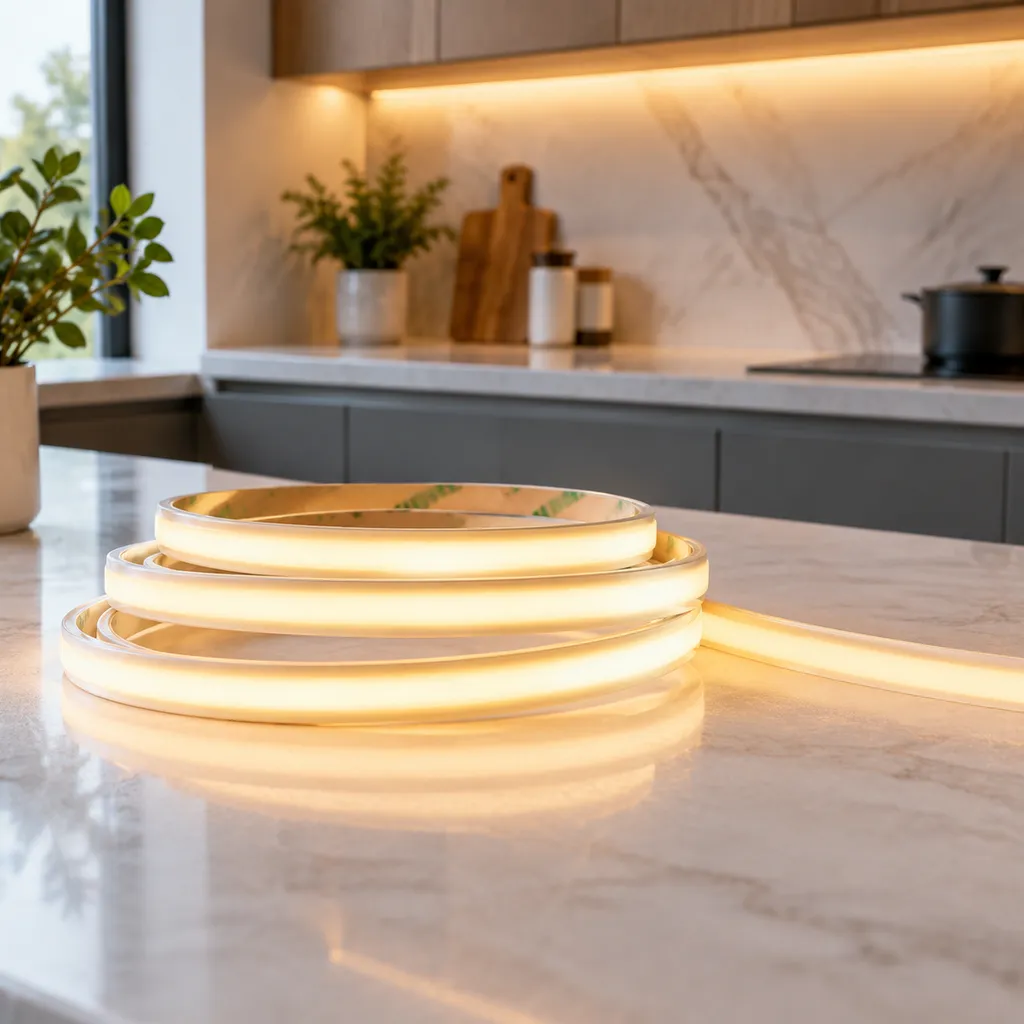

6 Key Advantages of Dotless COB Strips

When we design and manufacture linear lighting, standard SMD tape often hits limitations with glare and spotted reflections. Switching to a dotless COB LED strip solves these design headaches immediately.

Here are the six major advantages of using continuous, hotspot-free COB technology in your installations:

1. Seamless, Hotspot-Free Illumination

The primary benefit of a dotless COB strip is total uniformity. Because hundreds of micro-chips sit packed together beneath an uninterrupted phosphor layer, you get a clean, unbroken ribbon of light. There are no dark gaps, bright dots, or diode reflections on glossy surfaces like marble countertops, tile, or polished stone.

2. Wide 180° Beam Angle

Traditional SMD strips usually disperse light at a 120° angle. A dotless COB LED strip spreads light across a full 180° field. This wider dispersion blankets surfaces evenly and eliminates the harsh light falloff typical of standard tape lights.

3. Ultra-Slim Profile for Tight Spaces

Because the continuous light layer is dot-free straight off the board, you do not need deep aluminum extrusions or heavy frosted lenses to blend the diodes. This enables seamless mounting inside shallow channels, narrow furniture grooves, and ultra-thin architectural reveals where standard fixtures simply cannot fit.

4. Superior Thermal Dissipation

Heat is the enemy of LED longevity. By attaching the diode dice directly to the flexible circuit board, the entire strip acts as an active heat sink. This direct thermal path distributes heat across the surface area efficiently, preventing concentrated thermal hotspots and extending the operating life of the strip.

5. High Flexibility and Durability

With micro-chips embedded directly into the substrate, the strip flexes smoothly around curves and corners without putting shear stress on brittle solder joints. You get a rugged, highly pliable lighting product that withstands tight bends during complex architectural installations.

6. Clean Color Quality and Eye Comfort

A continuous phosphor coating produces a consistent spectral output across the entire run. This minimizes color shift and reduces visual glare. For a deeper technical breakdown of how these boards perform under different electrical loads, review our comprehensive COB LED strip guide to plan your layouts with precision.

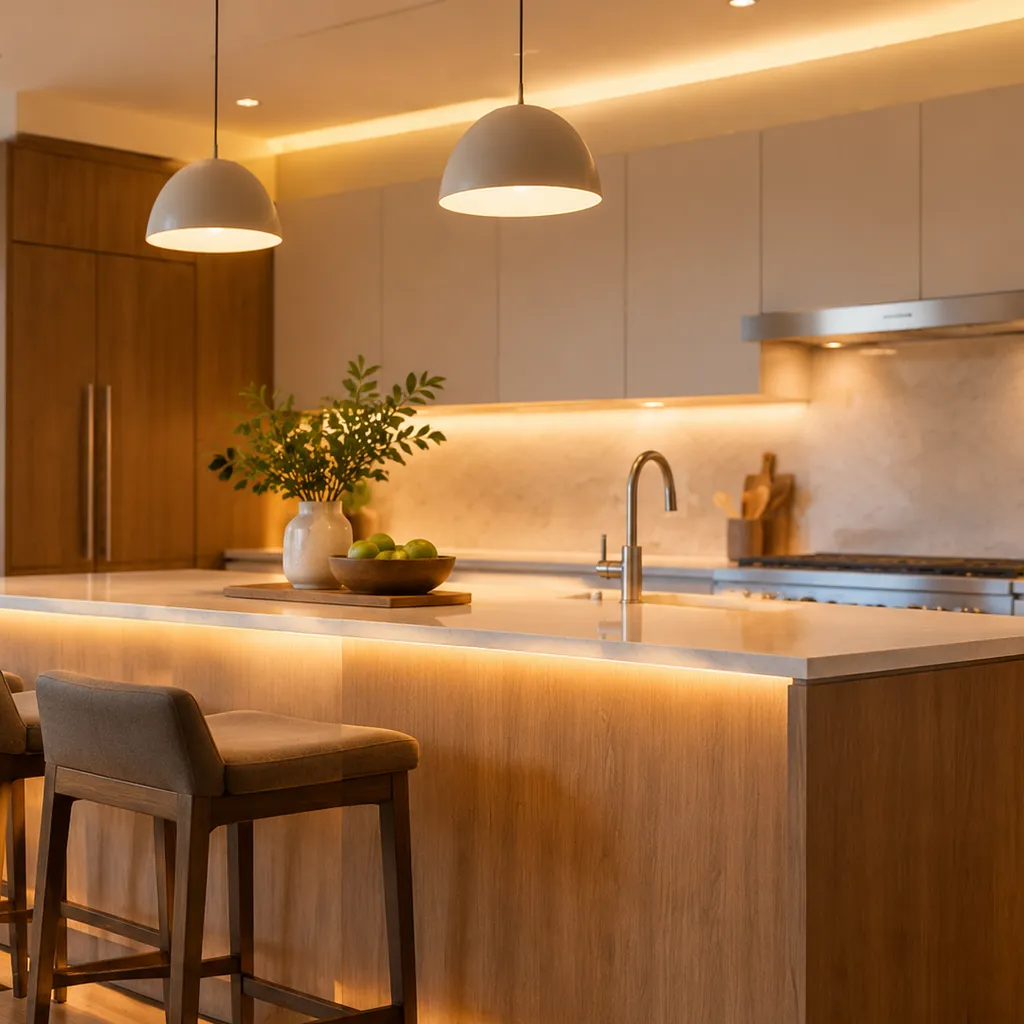

Top 5 Applications for Dotless COB Lighting

When clients ask what a dotless COB LED strip is best used for, our answer always centers on projects demanding seamless light without bulky diffusers. Because chip-on-board engineering eliminates individual diode hotspots, these strips deliver a smooth, continuous beam directly onto surfaces where traditional tape light falls short.

Here are the top five ways we deploy dotless COB lighting in modern architectural and commercial designs.

1. Under-Cabinet Lighting Over High-Gloss Surfaces

Polished stone countertops, quartz, and glazed tiles act like mirrors. Traditional SMD strips leave ugly reflections of visible dots across these surfaces. A dotless COB LED strip produces a unified linear glow, giving kitchens and workstations clean task lighting without distracting glare or optical spots.

2. Shallow Architectural Profiles and Recessed Coves

Standard LED channels often require deep aluminum extrusions and frosted lenses to blend individual light dots together. Dotless COB strips solve this space issue instantly:
Low-profile integration: Fits effortlessly inside ultra-thin channels flush-mounted into drywall or millwork.
Uniform perimeter glow: Accents architectural coves, tray ceilings, and baseboard reveals with zero shadow gaps.

3. Hospitality, Bar, and Restaurant Accents

In dining and lounge settings, lighting sets the mood. Visible LED diodes break the ambiance, whereas continuous COB illumination creates soft, premium accents along toe-kicks, under-bar counters, and banquette seating. Integrating dotless linear runs is a staple technique in modern coffee shop lighting ideas, where warm, glare-free light keeps spaces inviting and visually refined.

4. Retail Display Cases and Luxury Millwork

High-end jewelry displays, boutique shelving, and cosmetic showcases require immaculate product presentation. COB strips provide smooth, uninterrupted light runs along shelf edges:
Eliminates harsh point-source reflections on glass cases and luxury packaging.
Maintains compact placement inside tight display crevices without overheating sensitive merchandise.

5. Direct-View Linear Fixtures and Accent Lines

When a lighting design leaves the light source exposed, standard strips look unfinished. Dotless COB strips function as standalone luminous lines. Whether integrated into custom geometric pendant lights, surface-mounted wall outlines, or edge-lit signage, they provide an unbroken beam that looks completely solid from every viewing angle.

LNLED Dotless COB Strip Product Range

At LNLED, we design our dotless COB LED strip lineup to solve the common headache of hotspots and uneven lines of light. As a dedicated LED strip manufacturer, we build high-density, phosphor-encapsulated lighting solutions tailored for architectural millwork, shallow profiles, and premium retail environments.

Versatile Options for Seamless Projects

Whether you need ultra-clean task lighting or dynamic ambient effects, our dotless series delivers steady, continuous illumination straight out of the box:

• Monochrome Dotless COB Series: Pure, uninterrupted linear light available across standard color temperatures (from warm 2700K to cool 6500K) with high CRI (90+) for accurate color rendering.
• Tunable White & Dim-to-Warm: Smooth transitions between warm amber tones and functional cool white without any visible diode shift.
• Color-Changing Options: Vibrant accent lighting utilizing the same continuous phosphor coating found in our advanced multi-color and RGB LED strip solutions.
• Protected & Weatherproof Builds: Sealed options designed to prevent moisture ingress, matching the protection levels of our dedicated waterproof LED strip lights for wet zones and outdoor joinery.

Core Specifications Overview

Our focus is straightforward: providing durable, dot-free illumination that cuts down installation time and eliminates the need for bulky diffuser lenses.
